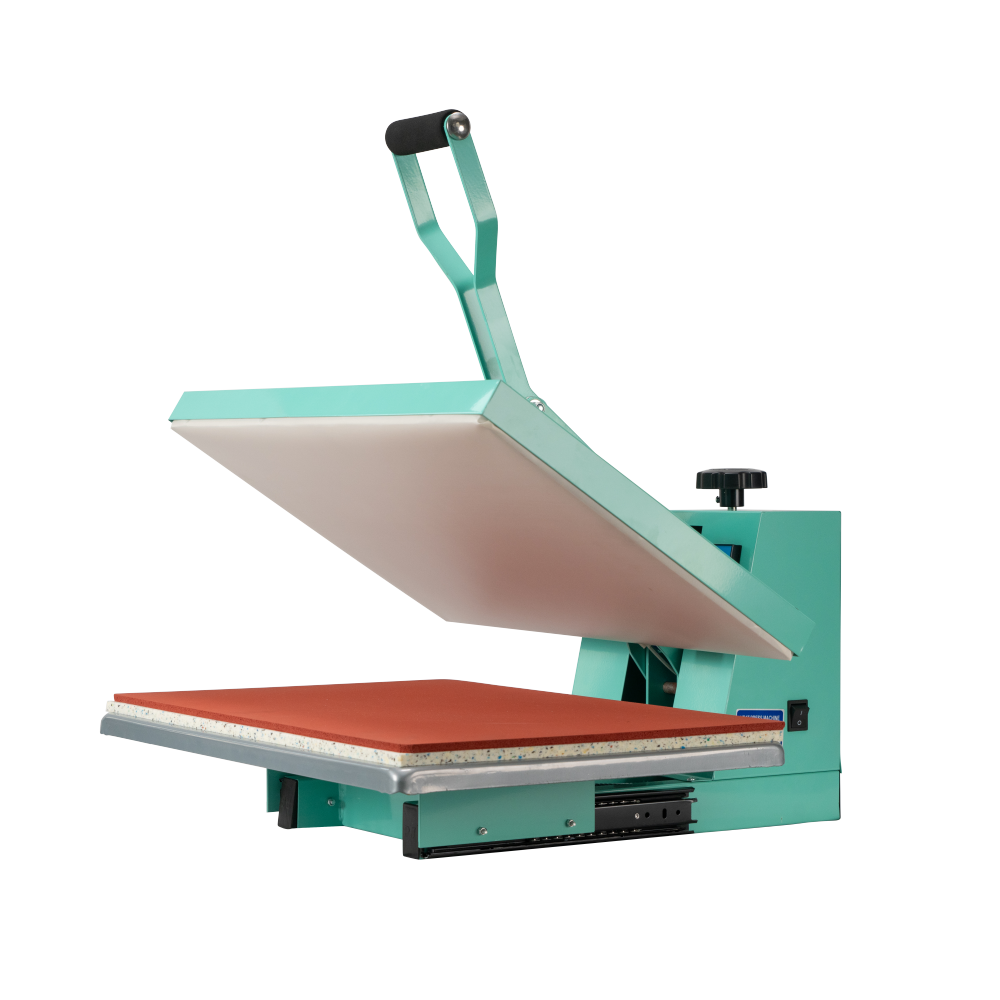

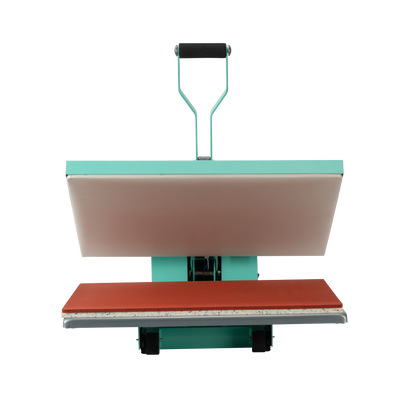

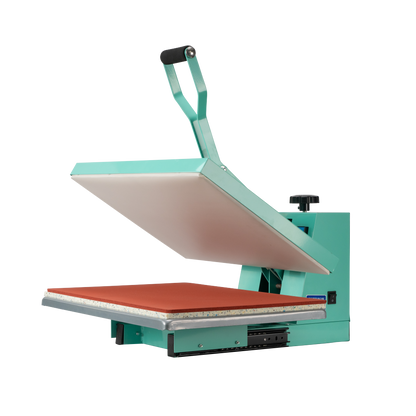

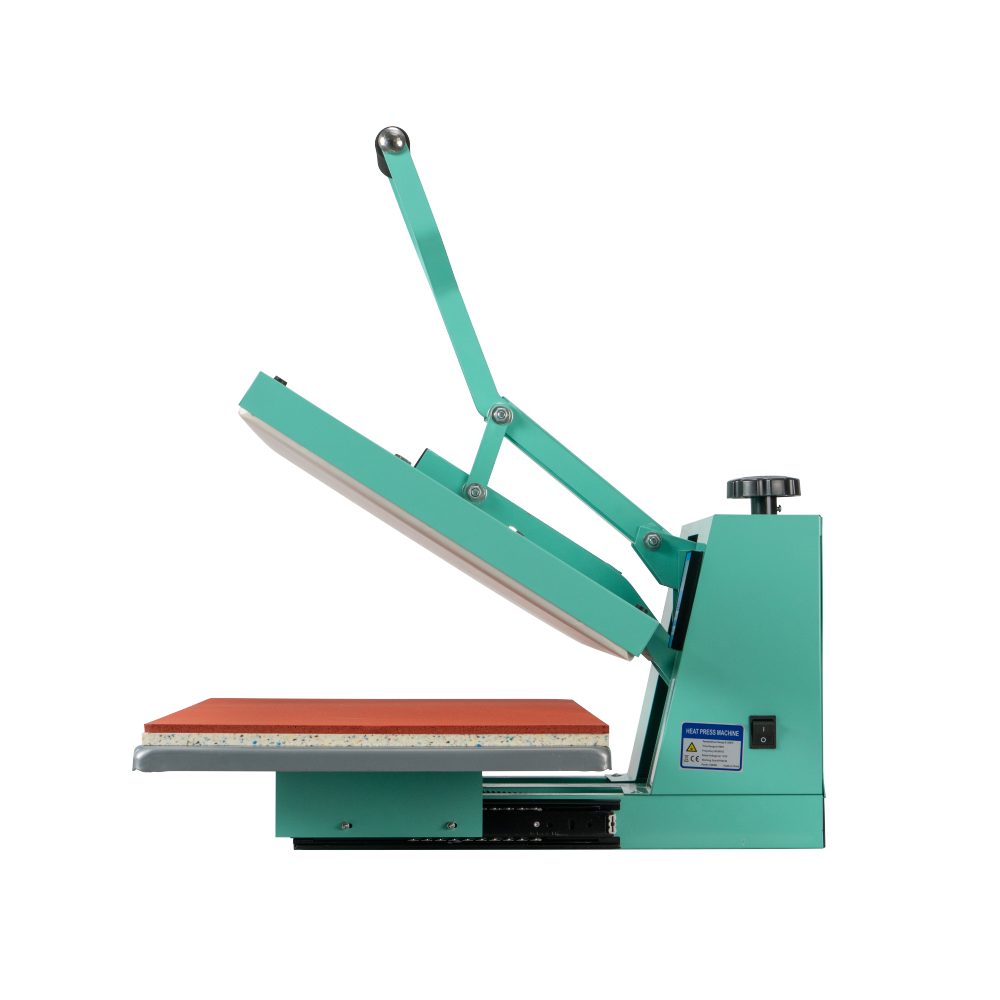

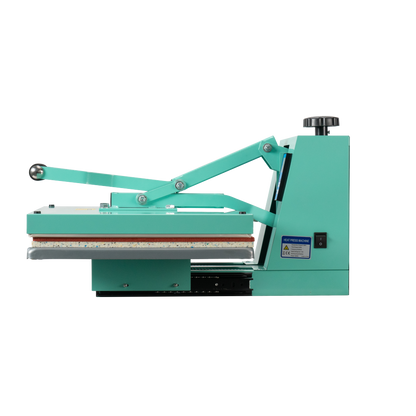

16x24 Manual Heat Press Machine With Slide-out base
16x24 Manual Heat Press Machine With Slide-out base
Regular price
$275.00 USD
Regular price
$0.00 USD
Sale price
$275.00 USD
Unit price
per
Couldn't load pickup availability
- Voltage: 110 volt Power: 2000 watts, Heat Press Style Clampshell
- With Slide-out Base
- Temperature Range: 0-500
- Electronic time and heat control
- Silicon pad lightly glued down for easy replacement
- Pressure adjustable
- Pink Model: CH-64P
16 x 24 inch Heat Press Machine
Fast Heating & One Station & Efficient Transfer
This Industrial-quality clamshell heat press adopts the latest heating technology and two-layer insulation pads to improve the transfer performance. The stability has also been enhanced with a high precision temperature sensor and accurate time controller, widely used for home decorations, customized gifts, and holiday celebrations.
1. 16 x 24 in Large Platen
2. Digital Control Board
3. Teflon Insulation Coating
4. Adjustable Pressure Knob
5. Easy to Use
Upgraded Teflon Coating
This Teflon-coating heat press is capable of decreasing the possibility of scorching during the transfers. Besides, it's easy to clean and can make printing more steady. A ground wire is also equipped for secure operation.
Tightly Wrapped
Adjustable pressure knobs, fitted-to-palm handle, and two soft silicone & sponge heating pads provide a full range of heating effects. Multiple designs help the mats tightly wrap the materials. Especially suitable for the transfer of flat items.

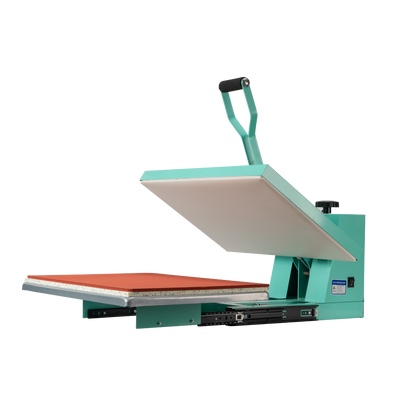

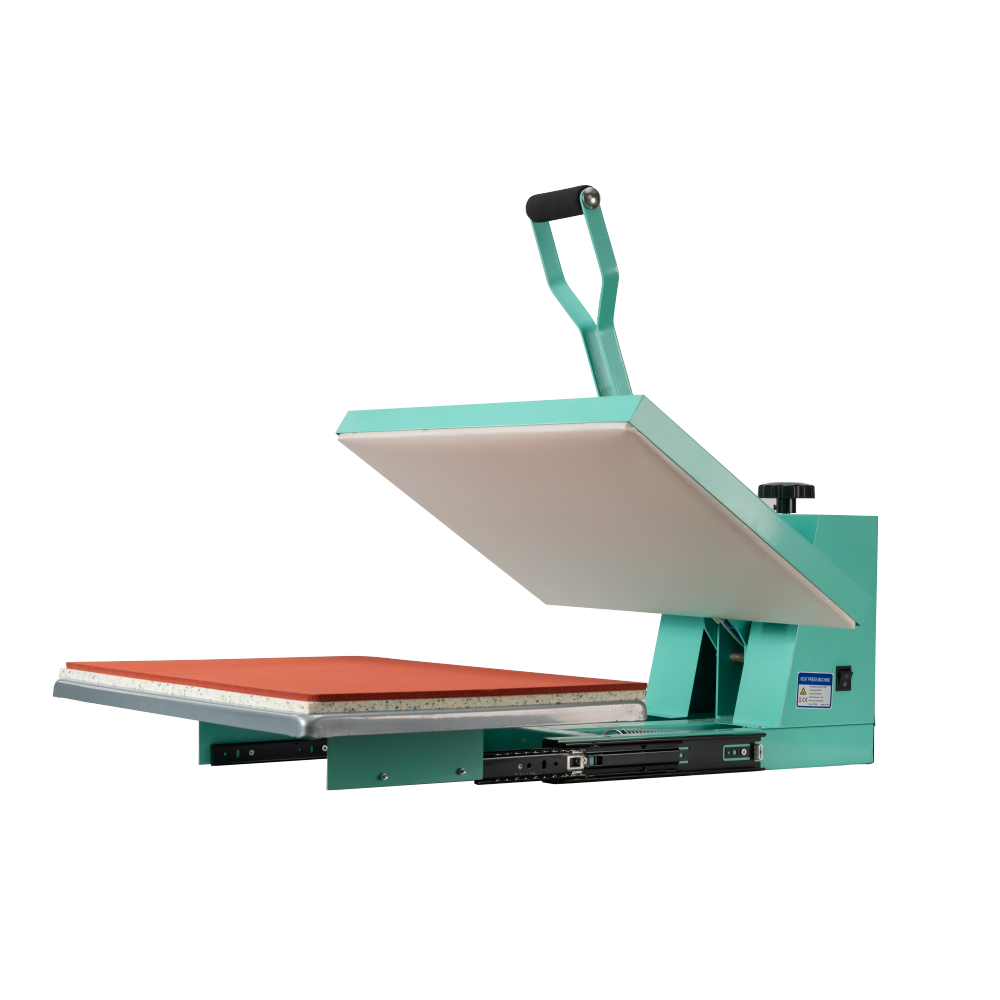

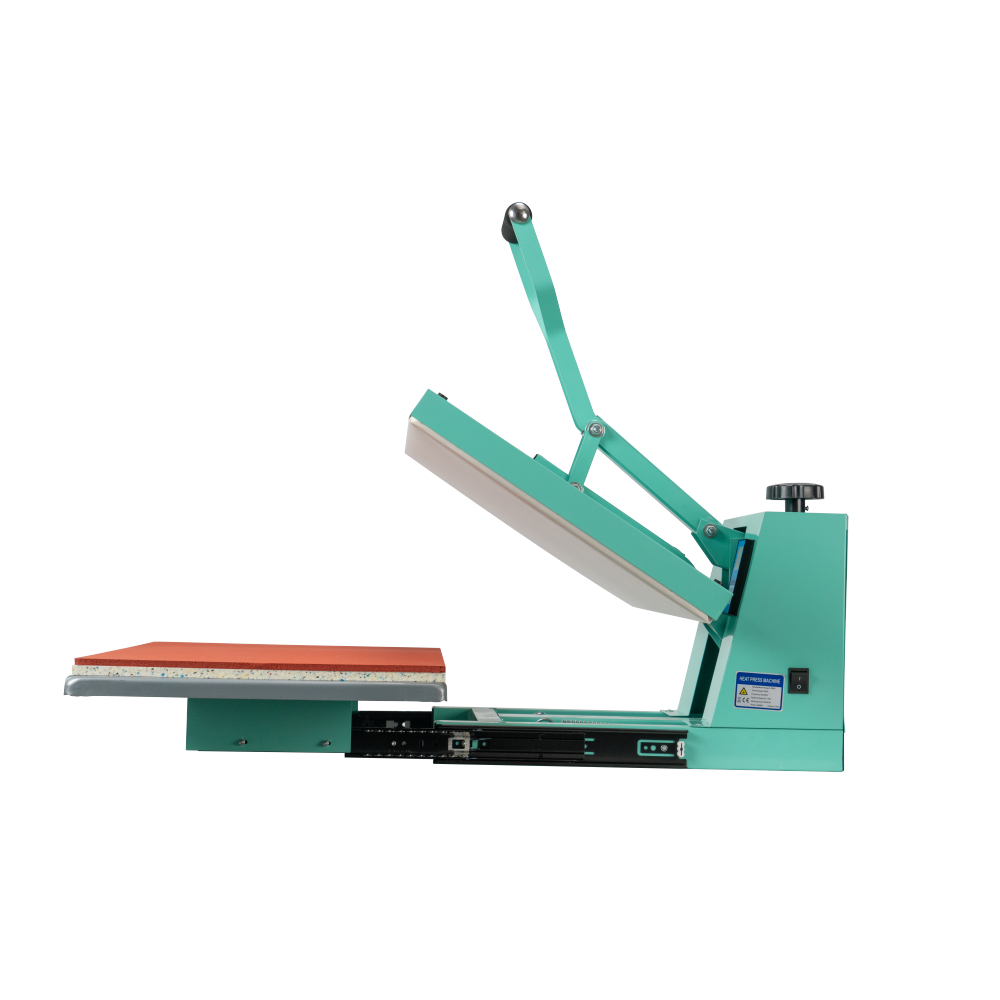

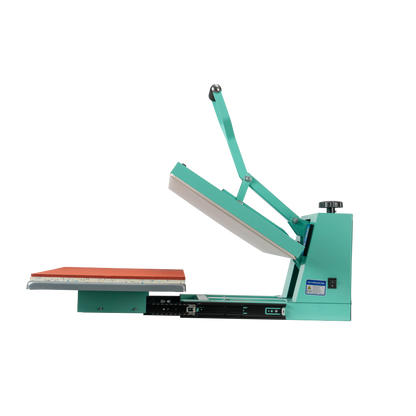

Slide- out Lower Platen
The slide- out lower platen can avoid scalding, easy to pull and push
Technical features:
| Voltage(V): | 110/60HZ |
| Power(KW): | 2 |
| Temperature(℃): | 0-299 |
| Delaying time(S): | 1-99 |
| G.W.(LB): | 77.18 |
| Packing Size(inch): | 31.5x28.0x17.5 |
| Accept Thickness: | Max. 2.36'' Thick Items |
| Range of Application: | Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics |
| Heat Plate Size: | 16'' x 24'' (40 x 60cm) |
2
| Pure Cotton Time: | 15s-25s |
| Polyester Time: | 40s |
| Chemical Fiber Time: | 10s-40s |
| Pearl Board Time: | 60s-100s |
| Metal Pendant Time: | 60s |
| Mousepad Time: | 50s |
| Vitrolite Time: | 180s |
| Ceramics Time: | 180s |
Temperature Requirements of Different Materials
| Pure cotton | 356℉-428℉ (180℃-220℃) |
| Polyester | 356℉ (180℃) |
| Chemical fiber | 302℉-356℉ (150℃-180℃) |
| Pearl board | 356℉ (180℃) |
| Metal pendant | 356℉ (180℃) |
| Mousepad | 374℉ (190℃) |
| Key ring pendant | 356℉ (180℃) |
| Ceramics | 356℉-428℉ (180℃-220℃) |
